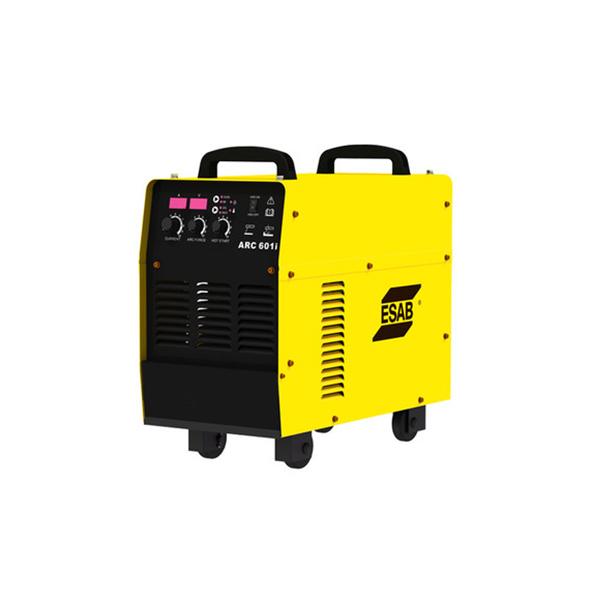

Esab Arc 601i 600A Arc Welding Machine
| Brand | ESAB |
| Model | Arc 601i |
| Input Voltage | 415 V ±15 %, 3 Φ, 50/60 Hz |
| Welding Output | 520 A @ 100 % Duty Cycle 600 A @ 60 % Duty Cycle |
| Current Range | 50-600 A |
| Open Circuit Voltage | 76 V |
| Power Factor at Maximum Current | 0.94 |
| Efficiency at Maximum Current | >90 % |
| Operating Temp | -10 - +40 °C |
| Enclosure Class | IP21S |
| Insulation Class | H |
| Standards | IEC 60974-1 |
| Dimensions, L x W x H | 635 x 320 x 581 mm |
| Weight | 50 kg |
Efficient & CompactArc 601i is an IGBT based inverter-controlled power source with robust and reliable design for MMA welding and Arc Gouging. The machine combines very heavy-duty cycle with a compact design for flexible working.
