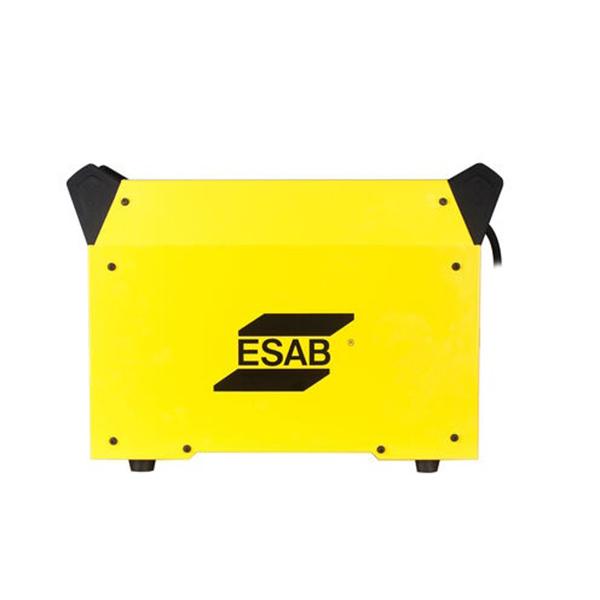

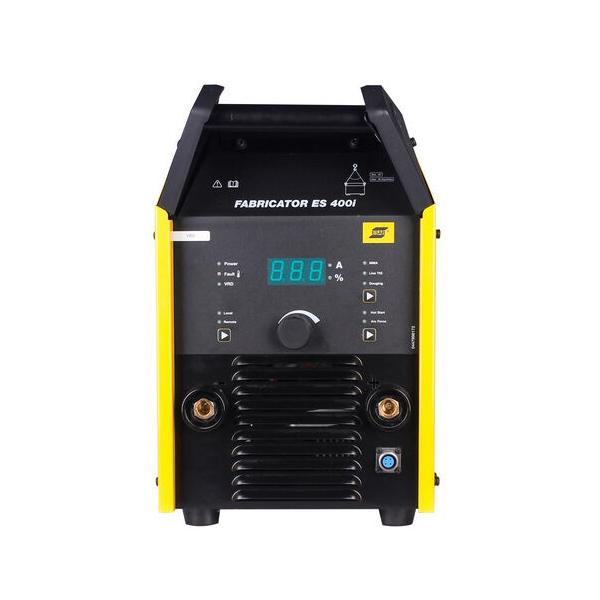

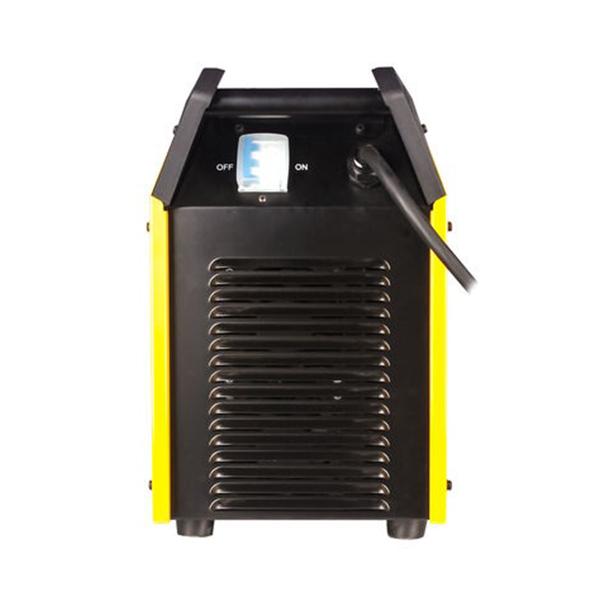

Esab ES 400i 400A Arc Welding Machine
| Brand | ESAB |
| Model | ES 400i |
| Input Voltage | 415 V +/- 15 %, 3 Φ, 50/60 Hz |
| Welding Output | 400 A @ 60 % Duty Cycle 310 A @ 100 % Duty Cycle |
| Current Range | 20 – 400 A |
| Open Circuit Voltage | 82 V |
| Power Factor at Maximum Current | 0.82 |
| Efficiency at Maximum Current | 88 % |
| Operating Temp | -10 - +50 degC °C |
| Enclosure Class | IP21S |
| Insulation Class | F |
| Dimensions, L x W x H | 525 x 280 x 475 mm |
| Weight | 29.5 kg |
Efficiency with RuggednessFabricator ES 400i is an IGBT based inverter-controlled power source with rugged & reliable design for MMA (Stick) welding & TIG (Lift TIG) welding. The machine is ideal for heavy fabrication with all types of electrodes.
