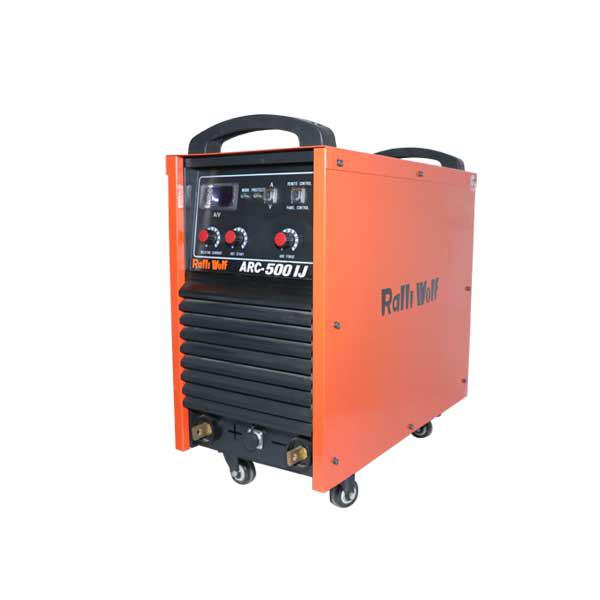

Ralli Wolf ARC500IJ (RA50) ARC Series (Inverter)
Brand | Ralli Wolf |
|---|---|
Model | ARC500IJ (RA50) |
Input Voltage (V) | AC 415V + 15% |
Frequency (HZ) | 50 / 60 |
Rated Input Current (A) | 35 |
Power (KVA) | 25.3 |
No - Load Voltage (V) | 80 |
Output Current Range (A) | 40 - 500 |
Rated Output Voltage (V) | 40 |
Duty Cycle (%) | 60 |
No Load Loss (W) | 80 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Insulation Grade | F |
Housing Protection Grade | IP 21 |
Net Weight (Kg) | 40 |
Invertor Technology | IGBT |
A Heavy duty IGBT technology based MMA power source , Sutaible for heavy fabrication, where high penetration is required. Thermal power stations, automic power projects, Oil refinery , Earth moving machinery workshops, are some of area are of its application.
High efficiency MMA DC welder.
Smooth & stable arc with minimum spatter and quality weld.
High efficiency and power factor reduces electricity bill.
Over / under voltage protection.
Over temperature / thermal protection.
Sutaible for all category electrodes.
Conforms to BIS : 4559.
The machines can be used with long extended cables at a considerable distance from the power source.
Digital display of the parameters.
Display of both set and load current.
TIG / Argon welding with scratch / lift arc start with optional TIG accessories.
VRD feature - Power coated ecofriendly power source. The equipments can be used for MMA/ TIG (lift arc) and Gouging (400 Amps and above).
APPLICATION :
Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy / Repair & Maintenance / Process Industries.
