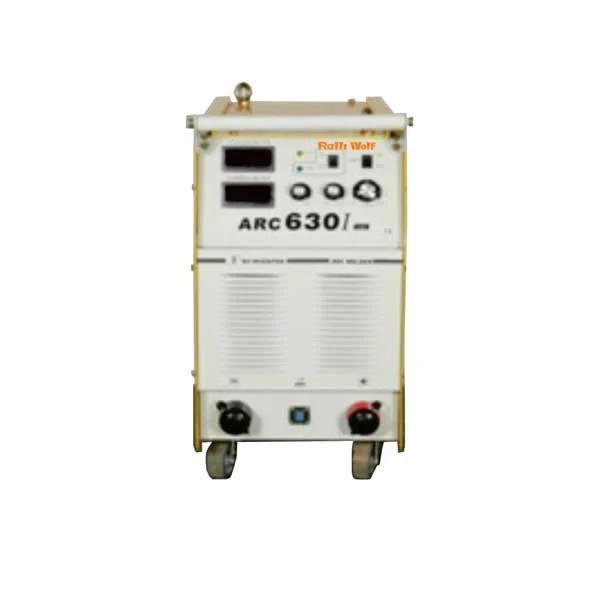

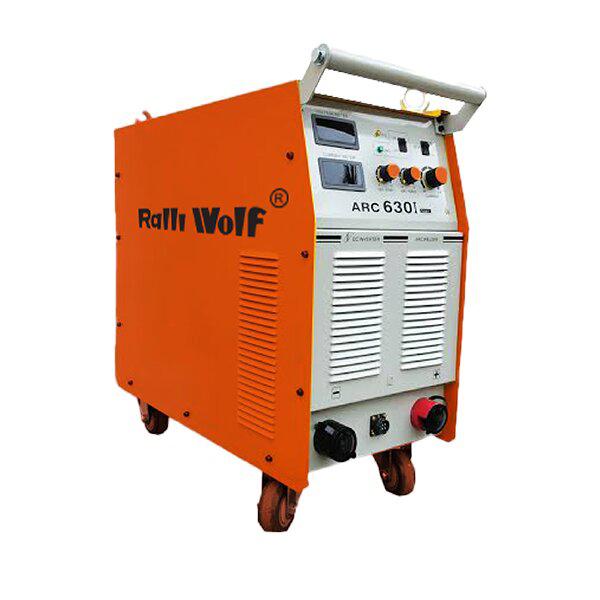

Ralli Wolf ARC630 (RA63) ARC Series (Inverter)
Brand | Ralli Wolf |
|---|---|
Model | ARC630 (RA63) |
Input Supply | 415V + 10%, 3Ph , 50Hz |
Rated Input Current (A) | 53.1 |
Rated Input Power Capacity (KVA) | 32 |
Power Factor | 0.91 |
Output Current Range (A) | 50-630 |
Arc-Force Range (A) | 0-220 |
Hot Start Range (A) | 0-220 |
Related No-Load Voltage (V) | 85 |
Rated Duty Cycle (%) | 60 |
Efficiency (%) | 85 |
Protection Class | IP-23 |
Insulation Class | H |
Dimensions (mm) | 661 X 340 X 625 |
Weight (Kg) | 55 |
Invertor Technology | IGBT |
A Heavy duty IGBT technology based MMA power source , Sutaible for heavy fabrication, where high penetration is required. Coal mines, Heavy machinery Fabrication, Thermal power stations, automic power projects, Oil refinery , Earth moving machinery workshops, are some of area are of its application.
₹0.00
Ralli Wolf ARC630 (RA63)
