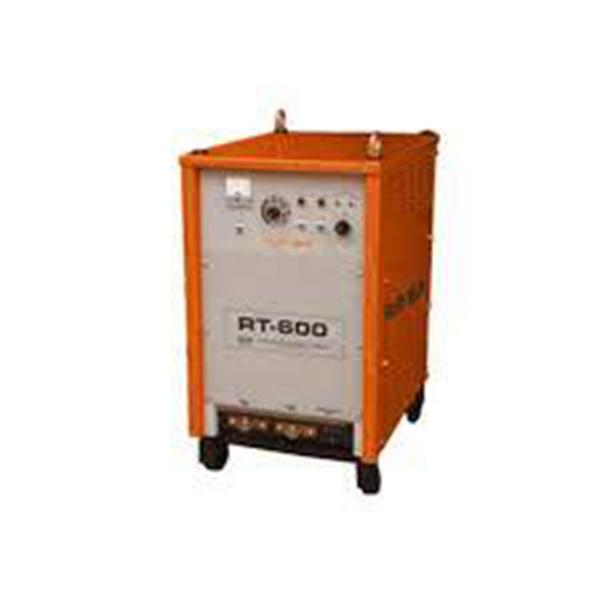

Ralli Wolf ARC600 (RT600) ARC Series (Fully Thyristorised)
Brand | Ralli Wolf |
|---|---|
Model | ARC600 (RT600) |
Input Supply Voltage | 415 V + 10%, 3Ph , 50Hz |
KVA (Max) | 39 |
Primary Current | 55 A |
Open Circuit Voltage | 95 V |
Rated Current | 600 A |
Max. Const. Hand Welding Current (60%) | 600 A |
Max. Automatic Welding Current (100%) | 470 A |
Current Range | 10-600 |
Insulation Class | H |
Protection | IP 23 |
Type Of Cooling | Forced Air |
Weight (Approx) | 145 Kg |
Length (mm) | 700 |
Width (mm) | 500 |
Height (mm) | 900 |
RT Series is a combination of high quality performamce & site worthy construction. It is a Thyristorised D.C. manual welder, also an excellent machine for D.C. TIG Welding with suitable accessories. RT-600 is suitable for GOUGING application too.
BENEFITS :
Ideal constant current power source for manual MMA/TIG Welding.
Stepless current control with Remote Control facility(optional).
Excellent arc striking up to 100 meters cable length (Electrode cable + Ground cable). Cable length drop compensated.
Stable arc and quality welding, high metal recovery.
Longer coil life.
Ideal for rough site conditions
FEATURES :
True constant current output.
Overload indication lamp with auto shut down.
Remote Control socket.
Confirms to IS : 4559.
Can be operated from captive Alternator sets.
Steady welding output current even with +/-10% variation in supply voltage.
OPTIONAL ITEMS :
Remote control unit.
P.F. Capacitor.
Isolator switch.
TIG accessories.
Gas / water cooled TIG Torch.
HF TIGNATOR for Argon welding.
Argon Gas regulator & flow meter.
