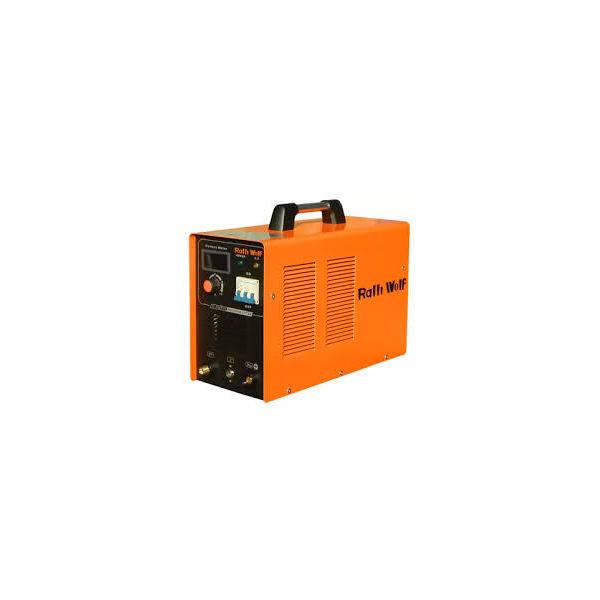

Ralli Wolf CUT100IJ (RC10) Air Plasma Cutting
Brand | Ralli Wolf |
|---|---|
Model | CUT100IJ (RC10) |
Input Voltage (V) | AC 415 + 15% |
Frequency (HZ) | 50 / 60 |
Rated Input Current (A) | 21 |
Power (KVA) | 15.1 |
No - Load Voltage (V) | 295 |
Output Current Range (A) | 20 - 100 |
Rated Output Voltage (V) | 120 |
Duty Cycle (%) | 60 |
No Load Loss (W) | 80 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Insulation Grade | F |
Housing Protection Grade | IP 21 |
Arcing Way | Pilot ARC Transfer |
Required Air Pressure (Kg/cm2) | 4.5 - 6 |
Cutting Thickness (mm) | 1 - 30 |
Net Weight (Kg) | 39 |
Ralliwolf offers the state of the art technology Inverter based Air Plasma Cutting Machines of high quality – The rugged, easy to operate power source has been developed in compliance with the specific industrial requirement and standards. Our precision-engineered machines are preferred by a large number of clients due to it’s durability, low cost and trouble-free performance – Suitable for metal cutting applications as better and economical alternate of oxy acetylene cutting process. A hevy duty torch (P.80) inhance the quality of the cut and increase the life of consumbles.
FEATURES & ADVANTAGES :
Dross-free and taper-free cu High efficiency & power factor reduces power consumption
Pilot Arc Facility enhances consumable durability
Easy and good clean cut in a fast & higher cutting productivity results in economies
Suitable for cutting SS, Cut, Carbon steel, Al and other metals
Minimum change in metallurgical properties of the metal under cut
Improved cooling of torch results in extremely high consumable life
AREA OF APPLICATION :
Auto body building workshop, Railways, power stations, chemical & fertiliser plants, food processing pharmaceutical equipments sheet metal fabrication, infrastructure, construction scrap cutting , sheapping industries etc.
