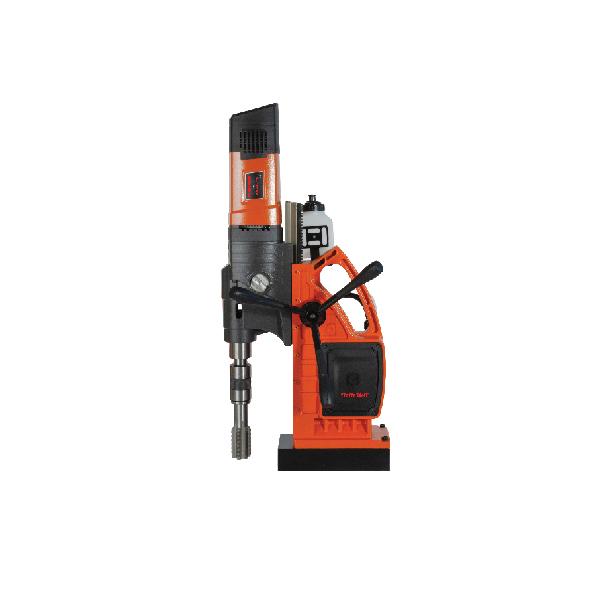

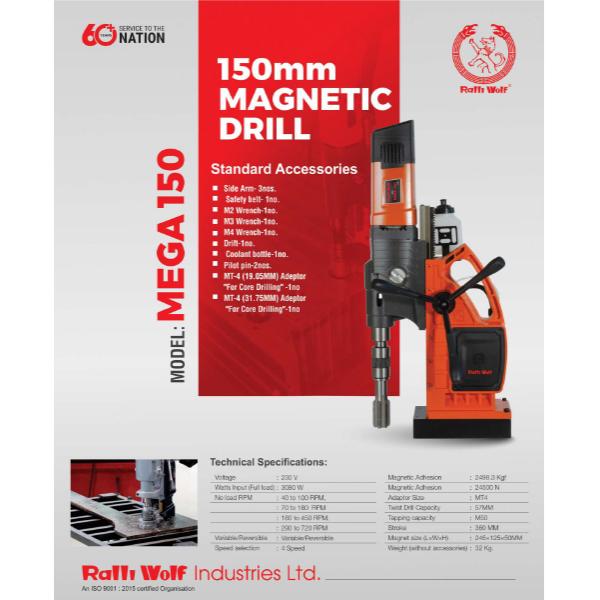

Ralli Wolf MEGA 150 (150mm X 150mm) 3080W Multifunction Magnetic Drill
Brand | Ralli Wolf |
|---|---|
Model | MEGA 150 |
Capacity | 150mm dia X 150mm Depth |
Core Drill Dia | 150 mm |
Twist Drill Dia | 57 mm |
No Load RPM | 40-100 rmp (1), 70-180 rpm (2), 180-450 rpm (3), 290-720 rpm (4). |
Tapping Dia | M50 |
Rated Frequency | 50-60 Hz |
Rated Input Power | 3080 W |
Max Attraction | 24500 N |
Cutting Depth | 150 mm |
Stroke | 350 mm |
Rated Voltage | 230V AC |
Multifunctional magnetic drill can be used in construction sites or workshop, can be used for twist dril, core drilling, reaming and tapping. A Portable magnetic drilling machine is used on steel or other magnetic materials. It gives an accurancy of 0.01 mm to 0.05 mm in steel or other magnetic material.
The drill bits used for this machines are generally made from high speed steel (HSS) of are tungsten carbide tipped (TCT).
Standard Accessories :
Allen Keys - 2 No.
Coolant Bottle
Safety Belt
Drift - 1 No.
13mm Drill Chuck Holder
