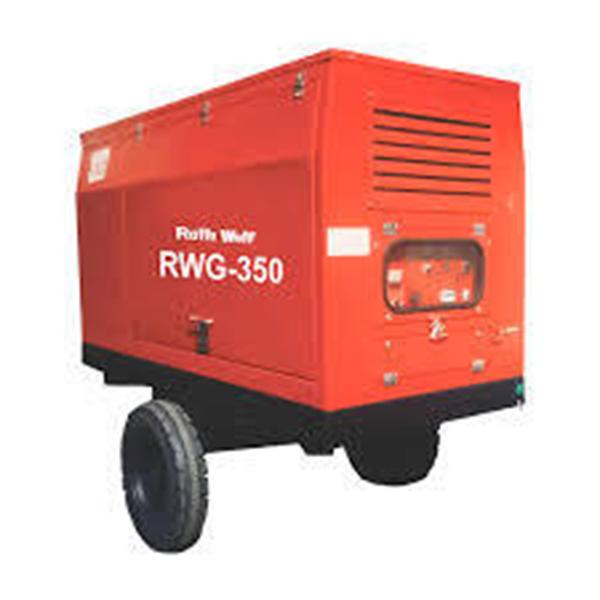

Ralli Wolf RWG-350 Engine Driven Welding Generator
Brand | Ralli Wolf |
|---|---|
Model | RWG350 (Engine Driven Welding Generator) |
Engine Make | ESCORTS - KUBOTA |
Gross HP | 40 |
Engine RPM | 1500 |
Cylinders | 3 |
Fuel | HSD |
Engine Conforms | IS : 10000/BS : 5514 |
Fuel Tank Capacity | 50 Ltr |
Cooling | Coolant Cooled |
ALTERNATOR OUTPUT :
Welding Current | 30-350 Amps |
|---|---|
Output @60% Duty | 300 Amps |
Output @100 Duty | 230 Amps |
OCV (Approx) | 70V DC |
Load Voltage (min-max) | 21-34V DC |
Electrode | 2.5-4mm M S, L H, S S 2.5-3.15mm - Cellulosic |
Insulation Class | H |
Auxiliary Unit | 2.5 KVA, 1 Ph, 230V & 7.5 KVA, 3 Ph, 415 V |
Approx Dimension With Trolly (in mm) (L x W x H) | 3100 X 1600 X 3200 |
Weight Approx | 1100 Kg |
Low Maintenance – Brushless Welding Generator for MMA Welding.
High Performance Machine with Rugged Design.
Heavy Duty Welding Generator with D.C Output for excellent Welding quality with all classes of electrodes, including cellulosic type.
Available as Skid Mounted, 2/4 Wheel s Trailer mounted with/without Leaf spring.
Inbuilt Auxiliary Power Supply of 230 & 415 V.
Allows a long lead of up to 100 meters.
High temperature class H insulation.
Optional Remote Control Facility.
Equipped with Battery Charging Indicator, Fuel Indicator, Temperature Indicator, Low Oil Pressure Indicator, RPM Meter, Start / Stop Switch, Ammeter, Voltmeter, Hour Meter, etc.
Low Engine Speed of 1500 rpm enhances engine life with low wear & tear. Minimum maintenance.
Meets CPCB noise & engine emission norms.
Smooth Arc with inbuilt Arc Force, Hot Start & Anti-Sticking facility.Easy manoeuvrability with Tow Bar & 360 degree swivelling type front wheel.
