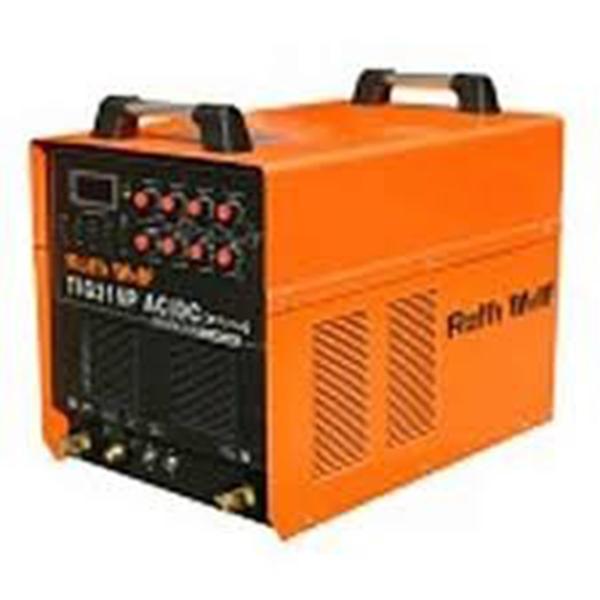

Ralli Wolf TIG200AC/DC (RT20A) TIG Series
Brand | Ralli Wolf |
|---|---|
Model | TIG200AC/DC (RT20A) |
Input Voltage (V) | AC 220 + 15% |
Rated Input Current (A) | 28.2 / 43.6 |
Power (KVA) | 9.59 |
No Load Voltage (V) | 54 |
Output Current Range (A) | 10 - 200 |
Rated Output Voltage (V) | 18 |
Duty Cycle (%) | 60 |
No Load Loss (W) | 80 |
Efficiency (%) | 80 |
Power Factor | 0.73 |
Pre - Flow (Sec.) | 2 |
Post - Flow (Sec.) | 0.25 |
Arcing Way | High Frequency |
Net Weight (Kg) | 22.1 |
MMA Facility | Available |
Inverter Technology | MOSFET |
Ralliwolf RT.20 A is a multi functional inverter based dual application model. The machines deliver HF AC and DC current both in TIG mode . AC mode is especially available for Aluminum and Aluminum, alloys. Few of applications. are.All kind of aluminum products , Decoration, Pipes * high pressure Vessels, construction, automobiles , furniture, , advertisement boards , SS utensils ,
Excellent TIG welding in MS, CS, SS, Copper, Alloys
Excellent TIG welding in SS,MS, CS and Aluminum.
High efficiency & Power factor results in low electricity bill
AC and DC output mode available with selector switch
MMA function is available as default
Pre & post flow function enhance the quality of weld
