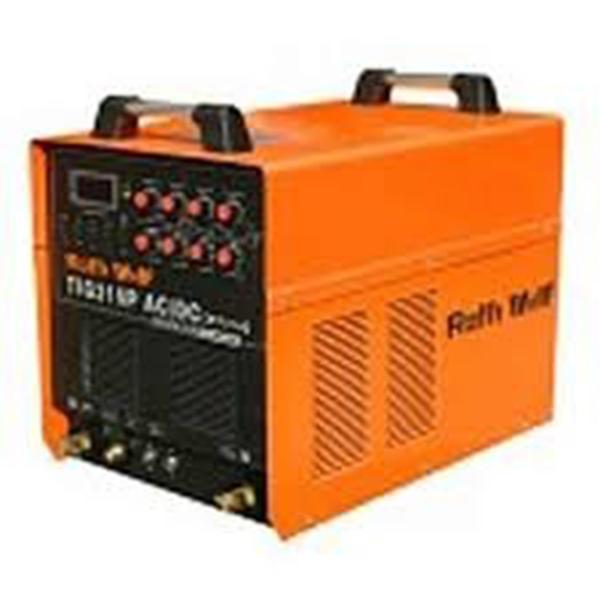

Ralli Wolf TIG 500IJ (RT50) TIG Series
Brand | Ralli Wolf |
|---|---|
Model | TIG500IJ (RT50) |
Input Voltage (V) | AC 415 + 15% |
Rated Input Current (A) | 26.2 / 35.0 |
Power (KVA) | 25.2 |
No Load Voltage (V) | 70 |
Output Current Range (A) | 10 - 500 |
Rated Output Voltage (V) | 38 |
Duty Cycle (%) | 60 |
No Load Loss (W) | 80 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Pre - Flow (Sec.) | 2.5 |
Post - Flow (Sec.) | 0 - 5 |
Arcing Way | High Frequency |
Net Weight (Kg) | 42 |
MMA Facility | Available |
Inverter Technology | IGBT |
FEATURES :
Dual Function : TIG and MMA
Arc Force for anti sticking
Superior Performance
Up slope & Down-slope function adjustable
With Remote control: Function
High OCV enhance the weld quality
Wide range for input voltage 415V+ 15%
APPLICATION :
Medium & heavy fabrications
Production plates like tube mills
Pipes & high pressure vessels
Constructions
